Data model and business logic specific to the Hyelicht shelf. More...

#include <shelfmodel.h>

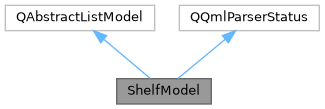

Inheritance diagram for ShelfModel:

[legend]

Collaboration diagram for ShelfModel:

[legend]

Public Types
enum	AdditionalRoles : int { AverageColor = Qt::UserRole + 1 , AverageRed , AverageGreen , AverageBlue , AverageBrightness }
	Non-standard model data roles offered by this model. More...

Signals
void	ledStripChanged () const
	The LedStrip instance this model operates on has changed.

void	enabledChanged (bool enabled) const
	The shelf has turned on or off.

void	rowsChanged (int rows) const
	The number of boards in the shelf has changed.

void	columnsChanged (int columns) const
	The number of compartments in each shelf board has changed.

void	densityChanged (int density) const
	The number of LEDs in each shelf compartment has changed.

void	wallThicknessChanged (int thickness) const
	The number of LEDs behind each compartment-dividing wall has changed.

void	brightnessChanged (qreal brightness) const
	The brightness of the shelf has changed.

void	animateBrightnessTransitionsChanged (bool animate) const
	Whether to animate transitions between brightness levels has changed.

void	averageColorChanged (const QColor &color) const
	The average color of the shelf has changed.

void	animateAverageColorTransitionsChanged (bool animate) const
	Whether to animate transitions between full-shelf color fills has changed.

void	transitionDurationChanged (int duration) const
	The duration in milliseconds for an animated fade between brightness levels or full-shelf color fills has changed.

void	animationChanged () const
	The animation operating on ledStrip has changed.

void	animatingChanged (bool animating) const
	Whether to run the animation has changed.

void	remotingEnabledChanged () const
	Whether to enable the remoting API server has changed.

void	listenAddressChanged () const
	The listen address for the remoting API server has changed.

Public Member Functions
	ShelfModel (QObject *parent=nullptr)
	Create a shelf model.

LedStrip *	ledStrip () const
	The LedStrip instance this model operates on.

void	setLedStrip (LedStrip *ledStrip)
	Set the LedStrip instance this model operates on.

bool	enabled () const
	Whether the shelf is on or off.

void	setEnabled (bool enabled)
	Turn the shelf on or off.

int	rows () const
	The number of boards in the shelf.

void	setRows (int rows)
	Set the number of boards in the shelf.

int	columns () const
	The number of compartments in each shelf board.

void	setColumns (int columns)
	Set the number of compartments in each shelf board.

int	density () const
	The number of LEDs in each shelf compartment.

void	setDensity (int density)
	Set the number of LEDs in each shelf compartment.

int	wallThickness () const
	The number of LEDs behind each compartment-dividing wall.

void	setWallThickness (int thickness)
	Set the number of LEDs behind each compartment-dividing wall.

qreal	brightness () const
	The shelf brightness level while on.

void	setBrightness (qreal brightness)
	Set the shelf brightness level while on.

bool	animateBrightnessTransitions () const
	Whether to animate transitions between brightness levels.

void	setAnimateBrightnessTransitions (bool animate)
	Set whether to animate transitions between brightness levels.

QColor	averageColor () const
	The average color of the shelf.

void	setAverageColor (const QColor &color)
	Sets the average color of the shelf.

bool	animateAverageColorTransitions () const
	Whether to animate transitions between full-shelf color fills.

void	setAnimateAverageColorTransitions (bool animate)
	Set whether to animate transitions between full-shelf color fills.

int	transitionDuration () const
	The duration in milliseconds for an animated fade between brightness levels or full-shelf color fills has changed.

void	setTransitionDuration (int duration)
	Set the duration in milliseconds for an animated fade between brightness levels or full-shelf color fills has changed.

AbstractAnimation *	animation () const
	The animation operating on ledStrip.

void	setAnimation (AbstractAnimation *animation)
	Set animation operating on ledStrip.

bool	animating () const
	Whether to run the animation.

void	setAnimating (bool animating)
	Set whether to run the animation.

bool	remotingEnabled () const
	Whether to enable the remoting API server.

void	setRemotingEnabled (bool enabled)
	Set whether to enable the remoting API server.

QUrl	listenAddress () const
	The listen address for the remoting API server.

void	setListenAddress (const QUrl &url)
	Set the listen address for the remoting API server.

QHash< int, QByteArray >	roleNames () const override

int	rowCount (const QModelIndex &parent=QModelIndex()) const override

QVariant	headerData (int section, Qt::Orientation orientation, int role=Qt::DisplayRole) const override

QVariant	data (const QModelIndex &proxyIndex, int role) const override

bool	setData (const QModelIndex &index, const QVariant &value, int role=Qt::EditRole) override

void	classBegin () override
	Implements the `QQmlParserStatus` interface.

void	componentComplete () override
	Implements the `QQmlParserStatus` interface.

Properties
LedStrip *	ledStrip
	LedStrip instance this model operates on.

bool	enabled
	Toggle the shelf on or off.

int	rows
	Number of boards in the shelf.

int	columns
	Number of compartments in each shelf board.

int	density
	Number of LEDs in each shelf compartment.

int	wallThickness
	Number of LEDs behind each compartment-dividing wall.

qreal	brightness
	The shelf brightness level while on.

bool	animateBrightnessTransitions
	Toggle animated transitions between brightness levels.

QColor	averageColor
	Average color of the shelf.

bool	animateAverageColorTransitions
	Toggle animated transitions between full-shelf color fills.

int	transitionDuration
	Duration in milliseconds for an animated fade between brightness levels or full-shelf color fills.

AbstractAnimation *	animation
	Animation to operate on ledStrip.

bool	animating
	Toggle the animation.

bool	remotingEnabled
	Toggle the remoting API server.

QUrl	listenAddress
	Listen address for the remoting API server.

Detailed Description

Data model and business logic specific to the Hyelicht shelf.

The Hyelicht shelf is a 5x5 IKEA Kallax shelf, of which the top 4 rows have LED backlighting of 104 LEDs each. This data model maps the 416 LEDs to rows in a QAbstractListModel, each row representing one compartment in the shelf.

In addition to this mapping the extended API of the model provides painting operations and sophisticated application behaviors on top of LedStrip.

ShelfModel with the remotingEnabled property enabled can act as an API server for instances of RemoteShelfModel, which act as client, either out of process or over the network. This allows running the onboard GUI out of process and also enables the PC/Android offboard instances of the application.

Communication between RemoteShelfModel and ShelfModel is implemented using Qt Remote Objects.

Implements QQmlParserStatus for use from QML.

See also: LedStrip; AbstractAnimation; QAbstractListModel; QQmlParserStatus

Member Enumeration Documentation

◆ AdditionalRoles

enum ShelfModel::AdditionalRoles : int

Non-standard model data roles offered by this model.

Enumerator
AverageColor	Average color of the LEDs in a shelf compartment.
AverageRed	Average red channel of the LEDs in a shelf compartment.
AverageGreen	Average green channel of the LEDs in a shelf compartment.
AverageBlue	Average blue channel of the LEDs in a shelf compartment.
AverageBrightness	Average brightness channel of the LEDs in a shelf compartment.

Constructor & Destructor Documentation

◆ ShelfModel()

ShelfModel::ShelfModel ( QObject * parent = nullptr )

explicit

Create a shelf model.

Parameters

parent Parent object

Member Function Documentation

◆ animateAverageColorTransitions()

bool ShelfModel::animateAverageColorTransitions ( ) const

Whether to animate transitions between full-shelf color fills.

This property is independent of the value of the property enabled.

Returns: Full-shelf color fill transitions on or off.

See also: animateAverageColorTransitions (property); setAnimateAverageColorTransitions; animateAverageColorTransitionsChanged; transitionDuration

◆ animateAverageColorTransitionsChanged

void ShelfModel::animateAverageColorTransitionsChanged ( bool animate ) const

signal

Whether to animate transitions between full-shelf color fills has changed.

Parameters

animate Full-shelf color fill transitions on or off.

See also: animateAverageColorTransitions; setAnimateAverageColorTransitions

◆ animateBrightnessTransitions()

bool ShelfModel::animateBrightnessTransitions ( ) const

Whether to animate transitions between brightness levels.

This property is independent of the value of the property enabled.

Returns: Brightness transitions on or off.

See also: animateBrightnessTransitions (property); setAnimateBrightnessTransitions; animateBrightnessTransitionsChanged; transitionDuration

◆ animateBrightnessTransitionsChanged

void ShelfModel::animateBrightnessTransitionsChanged ( bool animate ) const

signal

Whether to animate transitions between brightness levels has changed.

Parameters

animate Brightness transitions on or off.

See also: animateBrightnessTransitions; setAnimateBrightnessTransitions

◆ animating()

bool ShelfModel::animating ( ) const

Whether to run the animation.

The animation will be paused when enabled is false (without changing this property).

Returns: Animation on or off.

See also: animating (property); setAnimating; animatingChanged; animation

◆ animatingChanged

void ShelfModel::animatingChanged ( bool animating ) const

signal

Whether to run the animation has changed.

Parameters

animating Animation on or off.

See also: animating; setAnimating

◆ animation()

AbstractAnimation * ShelfModel::animation ( ) const

The animation operating on ledStrip.

Returns: An AbstractAnimation.

See also: animation (property); setAnimation; animationChanged; animating

◆ animationChanged

void ShelfModel::animationChanged ( ) const

signal

The animation operating on ledStrip has changed.

See also: animation; setAnimation

◆ averageColor()

QColor ShelfModel::averageColor ( ) const

The average color of the shelf.

While animating, this is the average color of all LEDs in the ledStrip. Otherwise, it is only the color average of LEDs found in shelf compartments (in the Hyelicht shelf, some LEDs are located behind divider walls and usually turned off to reduce color bleed).

If ledStrip is not set, this has the initial or the last set value.

Returns: Average shelf color.

See also: averageColor (property); setAverageColor; averageColorChanged; animateAverageColorTransitions

◆ averageColorChanged

void ShelfModel::averageColorChanged ( const QColor & color ) const

signal

The average color of the shelf has changed.

Parameters

color Color to fill with.

See also: averageColor; setAverageColor

◆ brightness()

qreal ShelfModel::brightness ( ) const

The shelf brightness level while on.

This property is independent of the value of the property enabled.

Returns: Shelf brightness level between 0.0 and 1.0.

See also: brightness (property); setBrightness; brightnessChanged; enabled; animateBrightnessTransitions

◆ brightnessChanged

void ShelfModel::brightnessChanged ( qreal brightness ) const

signal

The brightness of the shelf has changed.

Parameters

brightness Shelf brightness level between 0.0 and 1.0.

See also: brightness; setBrightness

◆ columns()

int ShelfModel::columns ( ) const

The number of compartments in each shelf board.

Returns: Number of compartments.

See also: columns (property); setColumns; columnsChanged; rows; density; wallThickness

◆ columnsChanged

void ShelfModel::columnsChanged ( int columns ) const

signal

The number of compartments in each shelf board has changed.

Parameters

columns Number of compartments.

See also: columns; setColumns

◆ data()

QVariant ShelfModel::data	(	const QModelIndex &	proxyIndex,
		int	role
	)		const

override

See also: AdditionalRoles; QAbstractItemModel::data

◆ density()

int ShelfModel::density ( ) const

The number of LEDs in each shelf compartment.

Returns: Number of LEDs.

See also: density (property); setDensity; densityChanged; rows; columns; wallThickness

◆ densityChanged

void ShelfModel::densityChanged ( int density ) const

signal

The number of LEDs in each shelf compartment has changed.

Parameters

density Number of LEDs.

See also: density; setDensity

◆ enabled()

bool ShelfModel::enabled ( ) const

Whether the shelf is on or off.

When on, the shelf brightness is set to the current value of brightness.

When off, the shelf brightness is set to 0 (without changing brightness).

Returns: Shelf on or off.

See also: enabled (property); setEnabled; enabledChanged; brightness

◆ enabledChanged

void ShelfModel::enabledChanged ( bool enabled ) const

signal

The shelf has turned on or off.

Parameters

enabled Shelf on or off.

See also: enabled; setEnabled

◆ headerData()

QVariant ShelfModel::headerData	(	int	section,
		Qt::Orientation	orientation,
		int	role = `Qt::DisplayRole`
	)		const

override

See also: QAbstractItemModel::headerData

◆ ledStrip()

LedStrip * ShelfModel::ledStrip ( ) const

The LedStrip instance this model operates on.

Returns: ShelfModel instance.

See also: ledStrip (property); ledStrip; ledStripChanged

◆ ledStripChanged

void ShelfModel::ledStripChanged ( ) const

signal

The LedStrip instance this model operates on has changed.

See also: ledStrip; setLedStrip

◆ listenAddress()

QUrl ShelfModel::listenAddress ( ) const

The listen address for the remoting API server.

Returns: Animation on or off.

See also: listenAddress (property); setListenAddress; listenAddressChanged; remotingEnabled

◆ listenAddressChanged

void ShelfModel::listenAddressChanged ( ) const

signal

The listen address for the remoting API server has changed.

See also: listenAddress; setEnabled

◆ remotingEnabled()

bool ShelfModel::remotingEnabled ( ) const

Whether to enable the remoting API server.

Returns: Server on or off.

See also: remotingEnabled (property); setRemotingEnabled; remotingEnabledChanged; listenAddress

◆ remotingEnabledChanged

void ShelfModel::remotingEnabledChanged ( ) const

signal

Whether to enable the remoting API server has changed.

See also: remotingEnabled; setRemotingEnabled

◆ roleNames()

QHash< int, QByteArray > ShelfModel::roleNames ( ) const

override

See also: QAbstractItemModel::roleNames

◆ rowCount()

int ShelfModel::rowCount ( const QModelIndex & parent = QModelIndex() ) const

override

See also: QAbstractItemModel::rowCount

◆ rows()

int ShelfModel::rows ( ) const

The number of boards in the shelf.

Returns: Number of boards.

See also: rows (property); setRows; rowsChanged; columns; density; wallThickness

◆ rowsChanged

void ShelfModel::rowsChanged ( int rows ) const

signal

The number of boards in the shelf has changed.

Parameters

rows	Number of boards.

See also: rows; setRows

◆ setAnimateAverageColorTransitions()

void ShelfModel::setAnimateAverageColorTransitions ( bool animate )

Set whether to animate transitions between full-shelf color fills.

Parameters

animate Full-shelf color fill transitions on or off.

See also: animateAverageColorTransitions; animateAverageColorTransitionsChanged; transitionDuration

◆ setAnimateBrightnessTransitions()

void ShelfModel::setAnimateBrightnessTransitions ( bool animate )

Set whether to animate transitions between brightness levels.

Parameters

animate Brightness transitions on or off.

See also: animateBrightnessTransitions; animateBrightnessTransitionsChanged; transitionDuration

◆ setAnimating()

void ShelfModel::setAnimating ( bool animating )

Set whether to run the animation.

The animation will be paused when enabled is false (without changing this property).

Parameters

animating Animation on or off.

See also: animating; animatingChanged; animation

◆ setAnimation()

void ShelfModel::setAnimation ( AbstractAnimation * animation )

Set animation operating on ledStrip.

The animation will be started or stopped based on the value of animating.

Should the animation be destroyed or set to nullptr, animating is automatically set to false.

Parameters

animation An AbstractAnimation.

See also: animation; animationChanged; animating

◆ setAverageColor()

void ShelfModel::setAverageColor ( const QColor & color )

Sets the average color of the shelf.

When set, this sets all LEDs found in shelf compartments to the given color.

Parameters

color Color to fill with.

See also: averageColor; averageColorChanged; animateAverageColorTransitions

◆ setBrightness()

void ShelfModel::setBrightness ( qreal brightness )

Set the shelf brightness level while on.

Parameters

brightness Shelf brightness level between 0.0 and 1.0.

See also: brightness; brightnessChanged; enabled; animateBrightnessTransitions

◆ setColumns()

void ShelfModel::setColumns ( int columns )

Set the number of compartments in each shelf board.

Cannot be lower than 1.

Parameters

columns Number of compartments.

See also: columns; columnsChanged; rows; density; wallThickness

◆ setData()

bool ShelfModel::setData	(	const QModelIndex &	index,
		const QVariant &	value,
		int	role = `Qt::EditRole`
	)

override

See also: AdditionalRoles; QAbstractItemModel::data

◆ setDensity()

void ShelfModel::setDensity ( int density )

Set the number of LEDs in each shelf compartment.

Cannot be lower than 1.

Parameters

density Number of LEDs.

See also: density; densityChanged; rows; columns; wallThickness

◆ setEnabled()

void ShelfModel::setEnabled ( bool enabled )

Turn the shelf on or off.

When turned on, the shelf brightness is set to the current value of brightness.

When turned off, the shelf brightness is set to 0 (without changing brightness).

Parameters

enabled Shelf on or off.

See also: enabled; enabledChanged; brightness

◆ setLedStrip()

void ShelfModel::setLedStrip ( LedStrip * ledStrip )

Set the LedStrip instance this model operates on.

LedStrip::enabled is not required to be true in order to use the model.

Parameters

ledStrip LedStrip instance.

See also: ledStrip; ledStripChanged

◆ setListenAddress()

void ShelfModel::setListenAddress ( const QUrl & url )

Set the listen address for the remoting API server.

Can be e.g. tcp:// or local:.

Parameters

url	Animation on or off.

See also: listenAddress; listenAddressChanged; remotingEnabled

◆ setRemotingEnabled()

void ShelfModel::setRemotingEnabled ( bool enabled )

Set whether to enable the remoting API server.

When enabled acts as an API server for instances of RemoteShelfModel, which act as client, either out of process or over the network. This allows running the onboard GUI out of process and also enables the PC/Android offboard instances of the application.

Parameters

enabled Server on or off.

See also: remotingEnabled; remotingEnabledChanged; listenAddress

◆ setRows()

void ShelfModel::setRows ( int rows )

Set the number of boards in the shelf.

Cannot be lower than 1.

Parameters

rows	Number of boards.

See also: rows; rowsChanged; columns; density; wallThickness

◆ setTransitionDuration()

void ShelfModel::setTransitionDuration ( int duration )

Set the duration in milliseconds for an animated fade between brightness levels or full-shelf color fills has changed.

The actual duration of a brightness fade is scaled by the delta between the old and the new brightness levels, as a fraction of the full range of 0.0 - 1.0.

Can be set to 0 to disable all animated fading and change to new brightness levels or full-shelf color fills immediately instead.

Parameters

duration Brightness transitions on or off.

See also: transitionDuration; transitionDurationChanged; animateAverageColorTransitions; animateBrightnessTransitions

◆ setWallThickness()

void ShelfModel::setWallThickness ( int thickness )

Set the number of LEDs behind each compartment-dividing wall.

The application will turn these off most of the time, in order to improve light bleed. Cannot be lower than 0.

Parameters

thickness Wall thickness in LEDs.

See also: wallThickness; wallThicknessChanged; rows; columns; density

◆ transitionDuration()

int ShelfModel::transitionDuration ( ) const

The duration in milliseconds for an animated fade between brightness levels or full-shelf color fills has changed.

This property is independent of the value of the property enabled.

Returns: Full-shelf color fill transitions on or off.

See also: transitionDuration (property); setTransitionDuration; transitionDurationChanged; animateAverageColorTransitions; animateBrightnessTransitions

◆ transitionDurationChanged

void ShelfModel::transitionDurationChanged ( int duration ) const

signal

The duration in milliseconds for an animated fade between brightness levels or full-shelf color fills has changed.

Parameters

duration Brightness transitions on or off.

See also: transitionDuration; setTransitionDuration

◆ wallThickness()

int ShelfModel::wallThickness ( ) const

The number of LEDs behind each compartment-dividing wall.

The application will turn these off most of the time, in order to improve light bleed.

Returns: Wall thickness in LEDs.

See also: wallThickness (property); setWallThickness; wallThicknessChanged; rows; columns; density

◆ wallThicknessChanged

void ShelfModel::wallThicknessChanged ( int thickness ) const

signal

The number of LEDs behind each compartment-dividing wall has changed.

Parameters

thickness Wall thickness in LEDs.

See also: wallThickness; setWallThickness

Property Documentation

◆ animateAverageColorTransitions

bool ShelfModel::animateAverageColorTransitions

readwrite

Toggle animated transitions between full-shelf color fills.

Defaults to true.

See also: setAnimateAverageColorTransitions; animateAverageColorTransitionsChanged; transitionDuration; averageColor

◆ animateBrightnessTransitions

bool ShelfModel::animateBrightnessTransitions

readwrite

Toggle animated transitions between brightness levels.

Defaults to true.

See also: setAnimateBrightnessTransitions; animateBrightnessTransitionsChanged; transitionDuration; brightness

◆ animating

bool ShelfModel::animating

readwrite

Toggle the animation.

The animation will be paused when enabled is false (without changing this property).

Defaults to false.

See also: setAnimating; animatingChanged; animation

◆ animation

AbstractAnimation* ShelfModel::animation

readwrite

Animation to operate on ledStrip.

When set, the animation will be started or stopped based on the value of animating.

Should the animation be destroyed or set to nullptr, animating is automatically set to false.

Defaults to nullptr.

See also: setAnimation; animationChanged; animating

◆ averageColor

QColor ShelfModel::averageColor

readwrite

Average color of the shelf.

While animating, this is the average color of all LEDs in the ledStrip. Otherwise, it is only the color average of LEDs found in shelf compartments (in the Hyelicht shelf, some LEDs are located behind divider walls and usually turned off to reduce color bleed).

If ledStrip is not set, this has the initial or the last set value.

When set, this sets all LEDs found in shelf compartments to the given color.

Defaults to white. The shelf is initialized to this value at application startup.

See also: setAverageColor; averageColorChanged

◆ brightness

qreal ShelfModel::brightness

readwrite

The shelf brightness level while on.

Shelf brightness is set in a range between 0.0 and 1.0.

This property is independent of the value of the property enabled.

Defaults to 1.0.

See also: setBrightness; brightnessChanged

◆ columns

int ShelfModel::columns

readwrite

Number of compartments in each shelf board.

Cannot be lower than 1.

Defaults to 5.

See also: setColumns; columnsChanged; rows; density; wallThickness

◆ density

int ShelfModel::density

readwrite

Number of LEDs in each shelf compartment.

Cannot be lower than 1.

Defaults to 20.

See also: setDensity; densityChanged; rows; columns; wallThickness

◆ enabled

bool ShelfModel::enabled

readwrite

Toggle the shelf on or off.

When turned on, the shelf brightness is set to the current value of brightness.

When turned off, the shelf brightness is set to 0 (without changing brightness).

Defaults to false.

See also: setEnabled; enabledChanged

◆ ledStrip

LedStrip* ShelfModel::ledStrip

readwrite

LedStrip instance this model operates on.

LedStrip::enabled is not required to be true in order to use the model.

Defaults to nullptr.

See also: setLedStrip; ledStripChanged

◆ listenAddress

QUrl ShelfModel::listenAddress

readwrite

Listen address for the remoting API server.

Can be e.g. tcp:// or local:.

Defaults to tcp://0.0.0.0:8042.

See also: setListenAddress; listenAddressChanged; remotingEnabled

◆ remotingEnabled

bool ShelfModel::remotingEnabled

readwrite

Toggle the remoting API server.

When enabled acts as an API server for instances of RemoteShelfModel, which act as client, either out of process or over the network. This allows running the onboard GUI out of process and also enables the PC/Android offboard instances of the application.

Defaults to true.

See also: setRemotingEnabled; remotingEnabledChanged; listenAddress

◆ rows

int ShelfModel::rows

readwrite

Number of boards in the shelf.

Cannot be lower than 1.

Defaults to 4.

See also: setRows; rowsChanged; columns; density; wallThickness

◆ transitionDuration

int ShelfModel::transitionDuration

readwrite

Duration in milliseconds for an animated fade between brightness levels or full-shelf color fills.

The actual duration of a brightness fade is scaled by the delta between the old and the new brightness levels, as a fraction of the full range of 0.0 - 1.0.

Can be set to 0 to disable all animated fading and change to new brightness levels or full-shelf color fills immediately instead.

Defaults to 400.

See also: setTransitionDuration; transitionDurationChanged; animateBrightnessTransitions; animateAverageColorTransitions

◆ wallThickness

int ShelfModel::wallThickness

readwrite

Number of LEDs behind each compartment-dividing wall.

The application will turn these off most of the time, in order to improve light bleed.

Cannot be lower than 0.

Defaults to 1.

See also: setWallThickness; wallThicknessChanged; rows; columns; density

The documentation for this class was generated from the following files:

/__w/hyelicht/hyelicht/src/shelfmodel.h
/__w/hyelicht/hyelicht/src/shelfmodel.cpp

Public Types

Signals

Public Member Functions

Properties

Detailed Description

Member Enumeration Documentation

◆ AdditionalRoles

Constructor & Destructor Documentation

◆ ShelfModel()

Member Function Documentation

◆ animateAverageColorTransitions()

◆ animateAverageColorTransitionsChanged

◆ animateBrightnessTransitions()

◆ animateBrightnessTransitionsChanged

◆ animating()

◆ animatingChanged

◆ animation()

◆ animationChanged

◆ averageColor()

◆ averageColorChanged

◆ brightness()

◆ brightnessChanged

◆ columns()

◆ columnsChanged

◆ data()

◆ density()

◆ densityChanged

◆ enabled()

◆ enabledChanged

◆ headerData()

◆ ledStrip()

◆ ledStripChanged

◆ listenAddress()

◆ listenAddressChanged

◆ remotingEnabled()

◆ remotingEnabledChanged

◆ roleNames()

◆ rowCount()

◆ rows()

◆ rowsChanged

◆ setAnimateAverageColorTransitions()

◆ setAnimateBrightnessTransitions()

◆ setAnimating()

◆ setAnimation()

◆ setAverageColor()

◆ setBrightness()

◆ setColumns()

◆ setData()

◆ setDensity()

◆ setEnabled()

◆ setLedStrip()

◆ setListenAddress()

◆ setRemotingEnabled()

◆ setRows()

◆ setTransitionDuration()

◆ setWallThickness()

◆ transitionDuration()

◆ transitionDurationChanged

◆ wallThickness()

◆ wallThicknessChanged

Property Documentation

◆ animateAverageColorTransitions

◆ animateBrightnessTransitions

◆ animating

◆ animation

◆ averageColor

◆ brightness

◆ columns

◆ density

◆ enabled

◆ ledStrip

◆ listenAddress

◆ remotingEnabled

◆ rows

◆ transitionDuration

◆ wallThickness
